Dialysis / Blood Chair

YFY-D09

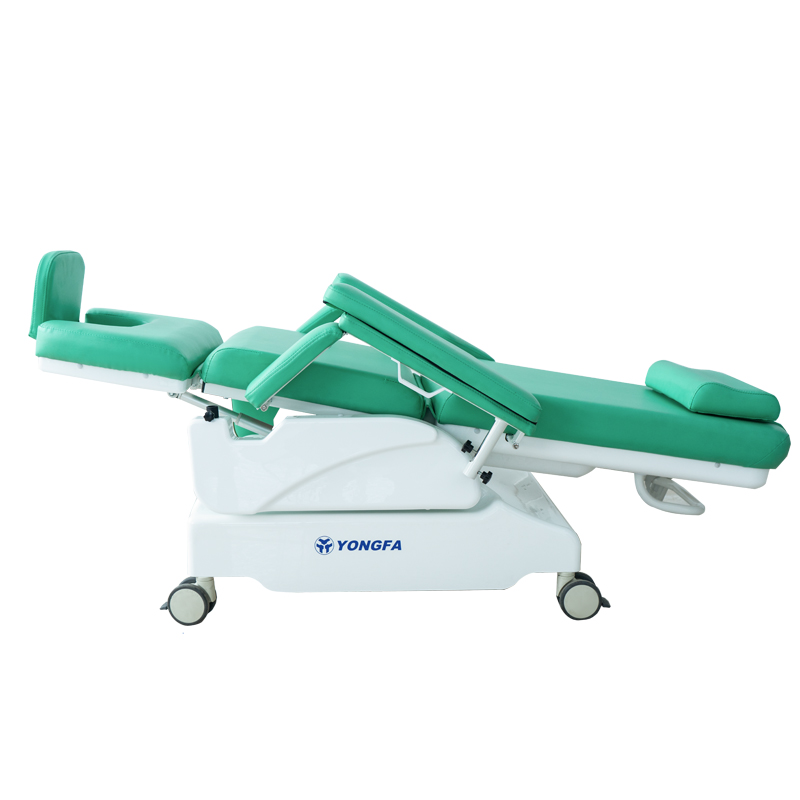

Electric Dialysis Chair

Fill in the form to get more product information
Catalogue
Product Introduction

Specification

● Total Length: 1950mm±20mm
● Pillow size: 410mm×230mm×80mm±20mm
● Seat width:   600mm(total width 900mm including armrest)±20mm
● Weight: 70KGS±3KGS
● Seat height: 580~780mm±20mm
● Safe Maximum Load: 240KGS
● Backrest length: 860mm±20mm
● Backrest Adjustment:  (-12°~75)±5°
● Height of armrest: 230~290mm±20mm
● Legrest Adjustment: (-75°~12)±5°
● Castor: 4×Φ100mm swivel castors with seperate brakes


Main Features

● European 4 sections ergonomics design
● High strength steel framework with epoxy coated
● Back section and leg section can be adjustable, easy to choose chair position and bed position
● Upgraded armrest, can adjust in horizontal level and height
● Manual CPR quick release on back section
● Electric CPR release
● With dust-proof base cover, protect motors and lines, easy to clean
● With comfortable mattress, optional genuine leather or artificial leather cover, easy to clean

Options

● Colors
● Four Wheels
● Over-bed Table
● Over Lifting function
