Electric Bed

YFD3618K(II)

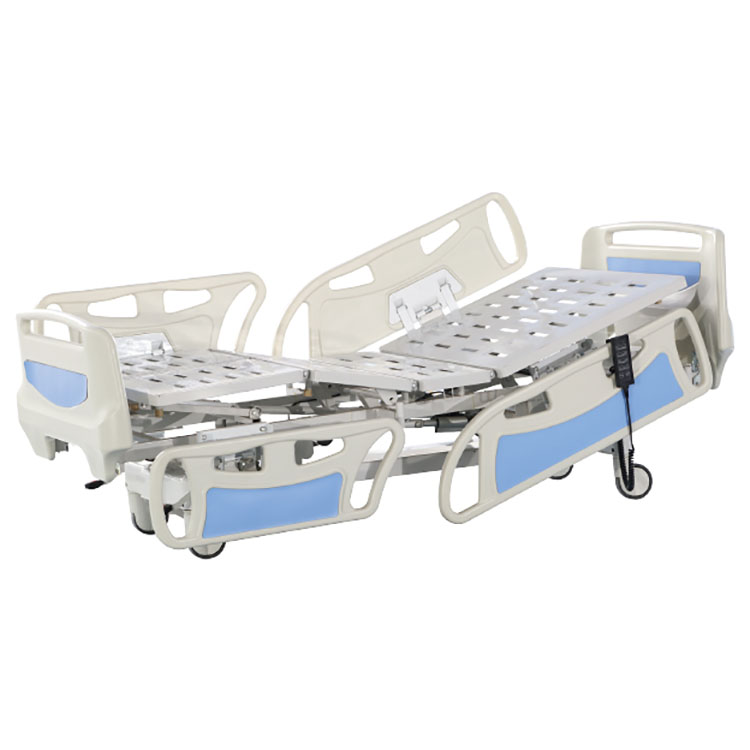

Three Function Electric Bed

Fill in the form to get more product information
Catalogue
Product Introduction

Technical Parameters

External size(L*W*H): 2130*1060*540-790mm
Loading Capcity: 260kg
Backrest max upward angle: 75°
Footrest max upward angle: 40°
Height adjustable: 540-790mm
Angle indicator
Auto-counter function

Technical Configuration

Bed various positions achieved by three motors
High strength steel bed frame with epoxy coated
Moulded MS steel platform with ventilation hole
ABS head/foot board, detachable with storage box
ABS tuck-away side rail, 4 pieces, angle indicator
Bumper roller on four corners
Hand remote wired controller
Heavy duty caster, dual sides with diameter of 125mm, Central locking system
I.V. pole, Urine bag hook

Options

Balkan traction frame
Single arm lifting pole
Plastic sleeping surface
X-ray translucent platform
Removable ABS sleeping platform
Manual CPR release on both side
Battery backup
Oxygen cylinder holder
