ICU Bed
YFD5618K(II)
Five Function ICU/CCU Electric Bed
Fill in the form to get more product information
Product Introduction
Technical Parameters
| External size(L*W*H): | 2220*1060*500-780mm |
| Loading Capcity: | 260kg |
| Backrest max upward angle: | 75° |
| Footrest max upward angle: | 40° |
| Height adjustable: | 500-780mm |
| Max Revese-Trendelenburg: | 0-12° |
| Max Trendelenburg: | 0-12° |

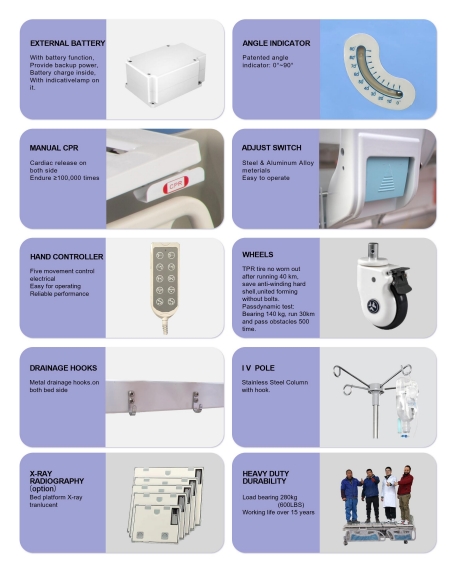

| Bed various position achieved by four motor | |
| Manual CPR release on both side | |
| Cardiac chair position function | |
| Angle indicator | |
| Battery backup | |
| Auto-counter function | |
| Auto-regress function | |
Technical Configuration
| Bed various positions achieved by four motors |
| High strength steel bed frame with epoxy coated |
| Moulded MS steel platform with ventilation hole |
| ABS head/foot board, detachable with storage box |
| ABS tuck-away side rail, 4 pieces, angle indicator |
| Embedded Electric railing control with nurse lock |
| Bumper roller on four corners |
| Hand remote wired controller |
| Heavy duty caster, dual sides with diameter of 125mm, Central locking system |
| ABS base cover |
| I.V. pole, Urine bag hook |
| Battery backup |
| Oxygen cylinder holder |
| PU foam mattress(12cm thickness) |
Options
| Balkan traction frame |
| Single arm lifting pole |
| Utility shelf |
| Plastic sleeping surface |
| X-ray translucent platform |
| Bed extension(150mm) |
| Accurate weighing scale |
| Bed exit alarm |
| Embedded railing control on both side |
