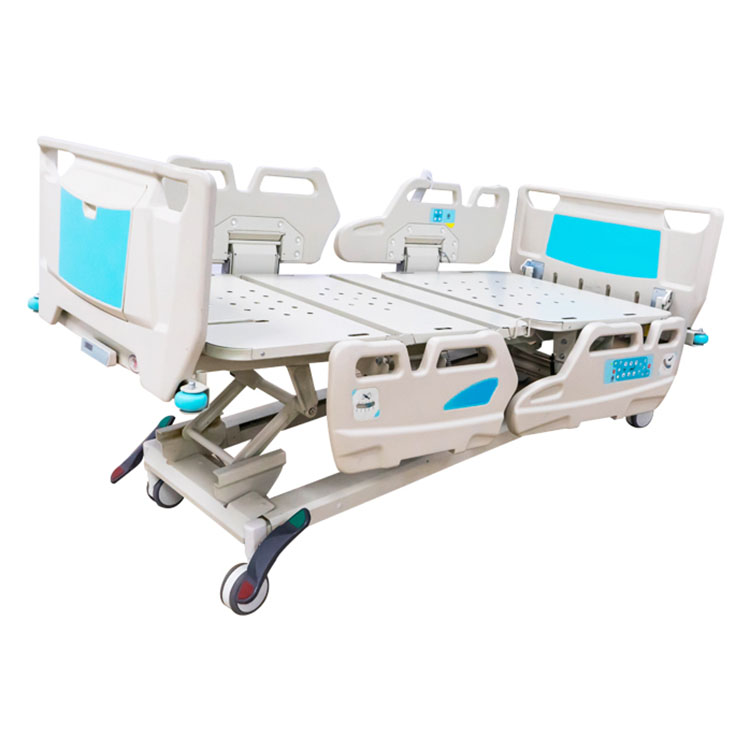

ICU Bed

YFD5638K(VI)

Five Function ICU/CCU Electric Bed

Fill in the form to get more product information
Video Catalogue
Product Introduction

Technical Parameters

External size(L*W*H): 2230*1050*480-830mm
Loading Capcity: 280kg
Height adjustment: 480-830mm
Back section adjustable: 0º to 75º±5°
Knee section adjustable: 0º to 40º±5°
Trendelenburg & reversed trendelenburg: 0º to 15º
Auto-counter function
Auto-regress function
Manual CPR release bottom accessible on both sides
One button electric CPR function
X-ray translucent platform for back section

Technical Configuration

Bed various positions achieved by four motors
High strength steel bed frame with epoxy coated
Moulded MS steel platform with ventilation hole
ABS head/foot board, detachable with storage box
ABS tuck-away side rail, 4 pieces, angle indicator
Embedded Electric railing control with nurse lock
Hand remote wired controller
Bumper roller on four corners
Heavy duty caster, dual sides with diameter of 125mm, Central locking system
I.V. pole, Urine bag hook
Battery backup.

Options(extra charge)

Accurate weighing scale
Bed extension function
Bed exit alarm
Lifting pole, Night light
ACP(nurse controller)hanging on foot board
