YFD5638K(V)

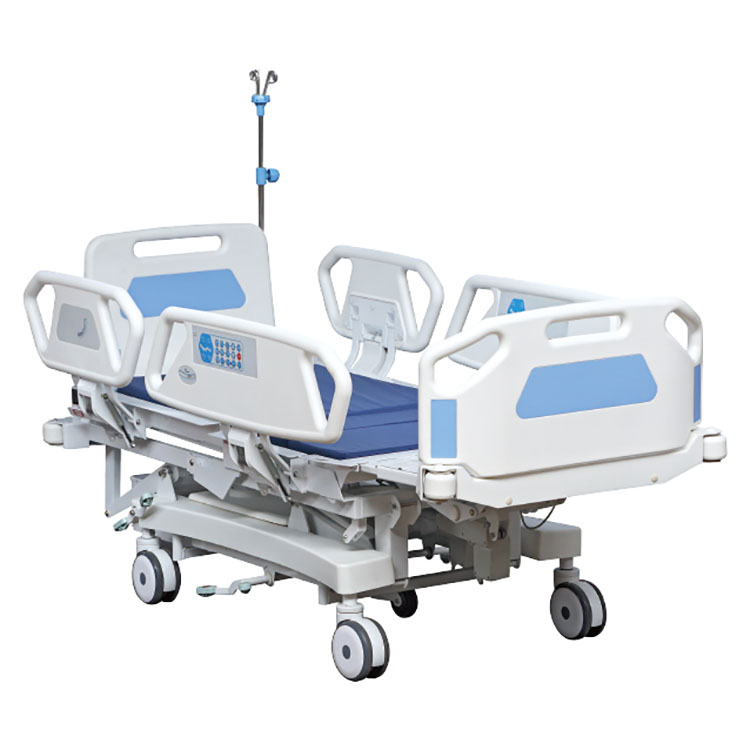

Seven Function Bariatric ICU/CCU Electric Bed
Fill in the form to get more product information
Product Introduction
Technical Parameters
| External size(LxW): | 2230*1080mm |
| Safe working load: | 260kg |
| Height adjustment: | 480-830mm |
| Back-rest adjustment: | 0º to 75º(±5°) |
| Knee-rest adjustment: | 0º to 40º(±5°) |
| Trendelenburg: | 0º to 12º |
| Reverse Trendelenburg: | 0º to 12º |
| Voltage and frequency: | 100-240V 50/60Hz |
| Plug as required: | hospital grade |
Technical Configuration
Weighing scale system
Cardiac position
Manual CPR
Back-up battery
X-ray translucent platform
Auto-counter function
Auto-regress function
ABS head/foot board
ABS tuck-away side rail
Hand remote wired controller
Embedded Electric railing control
LCD control panel on bed end
Steering function for wheels
Heavy duty caster with central locking
Oxygen cylinder holder
IV pole
Urine bag hook
PU foam mattress (12cm thickness)
Balkan traction frame(Option)
Single arm lifting pole(Option)
Utility shelf(Option)
Bed extension(Option)
Product Details
Steels | Painting
One-step Molding Epoxy painting,
ASTM testing anti-baterial,
Paint thickness0.12 mm,
Brightness 60,
Paint can resist 50 kg impact.
Raw Plastic
Made of brand new raw material Eliminate recycled plastic Nontoxic,cleaning From famous manufacture
Chassis | Welding
High strength stamping feet Japan robotic ensure,360° fullsmooth wedlding. Stainless steel nut
Thick Steel Plate
Using 20% thicker steel plate than standard To ensure durable use
End Board
High strength stamping feet Japan robotic ensure 360° full smooth wedlding.
Side Rail
Tuck away side rail with buffer, Built-in controller and angle indicator.
Electric Motor
Linear motor, with UL/ROHS/EN standard. Noise under 50 dB, with lifetime 20,000 times movement.
Control Box
Maximum support 6 motors Voltage：100-240V More flexible Famous brand
Nurse Controller
Patient weighing display 5 movement electrically Electric cardiac position Nurse lock function
Side Rail & Hand Controller
One button CPR function One button switch Remote hand operater
Angle indicator
Patented angle indicator: 0°~90°
Bumper Wheels
Patented bumper wheel detachable,max. protect the bed and patientduring transportation.
Manual CPR
Cardiac release on both side Endure ≥100,000 times
Adjust Switch
Steel & Aluminum Alloy meterials Easy to operate
Durable Brakes
Break spring keep qualified after10,000 times uninteruped break.
Wheels
TPR tire no worn out after running 40 km, save anti-winding hard shell,united forming without bolts. Passdynamic test: Bearing 140 kg, run 30km and pass obstacles 500 time.
Drainage Hooks
Metal drainage hooks.on both bed side
i V pole
Stainless Steel Column with hook.
X-RAY Radiography
Bed platform X-ray tranlucent
Heavy Duty Durability
Load bearing 280kg (600LBS) Working life over 15 years
