Refrigerator / Freezer

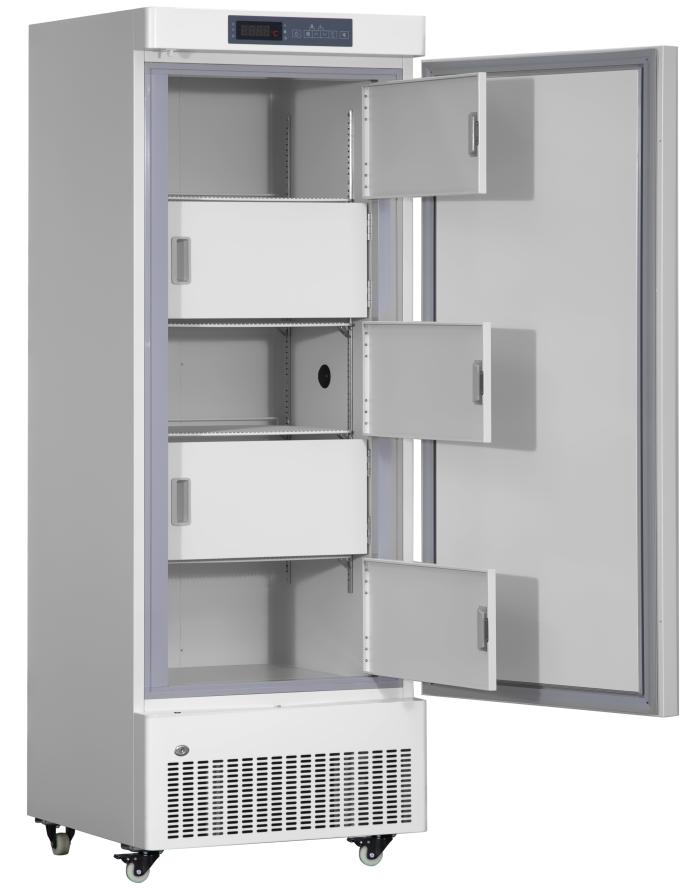

YF-25V328E

Fill in the form to get more product information
Catalogue
Product Introduction
Specifications
Model NO. YF-25V328E
Main Specifications
Temperature Range -10 ~ -25 ℃
Ambient Temperature 10~32℃
Capacity (L/Cu. Ft.) 328 / 11.58
Interior Dimensions (W×D×H) mm 508×455×1393
Exterior Dimensions (W×D×H) mm 673×676×1886
Weight 113 kgs
Noise 46 dB
Control and Power
Controller Microprocessor
Display Digital
Sensor NTC
Voltage and Frequency 187~242V, 50/60Hz
Power 180 W
Electric Current 1.4 A
Power Consumption (kWh/24h) 3
Audible and Visual Alarms
High / Low Temp. Alarm Yes
Power Failure Alarm Yes, 8h
Sensor Error Alarm Yes
Controller Error Alarm Yes
Door Ajar Alarm Yes
Refrigeration
Refrigeration Type Direct Cooling
Defrost Manual
Compressor (Brand/pcs) CUBIGEL / 1
Refrigerant / Weight (kgs) R290 / 60g
Cabinet
Door (pcs) Foamed Solid Door / 1
Inner Door (pcs) Coated Steel Door / 5
Fixed / Adjustable Shelf (pcs) 0 / 4
Interior Cabinet Material Coated Steel
Exterior Cabinet Material Coated Steel
Insulation Material PURF (δ82.5mm)
Door Lock Yes
Test Hole (pcs) Φ25mm / 1
Fixed / Levelling Castors (pcs) 4 / 0
Accessories
Voltage Stabilizer Optional
USB Data Download Port Optional
Remote Alarm Port Optional
RS232 / RS485 Port Optional
Temperature Datalogger Optional
Temperature Printer Optional
Shipping
Package Carton box with pallet
Shipping Weight 131 kgs
Shipping Size (W×D×H) 770×770×2040
Shipping Volume 1.21 CBM
