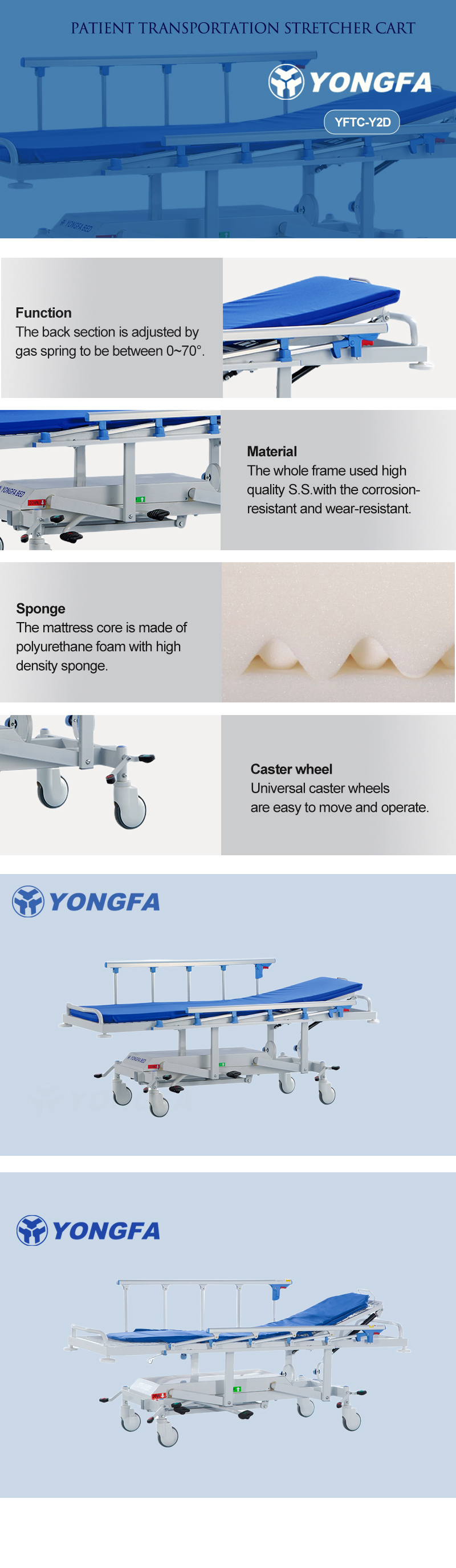

Hospital Stretcher
YFTC-Y2D
Hydraulic Patient Transportation Stretcher Cart
Fill in the form to get more product information
Product Introduction
Technical Parameters
| Overall Dimensions: | (L)2100*(W)700*(H)460-810mm |
| Loading capacity: | 250kg |
| Height adjustment: | 460-810mm |
| Back section adjustable from: | 0 to 75° |
Technical Configuration
| Urine hooks: | 1 pair |
| Stainless steel I.V pole: | 1 piece |
| Oxygen cylinder holder: | 1 piece |
| Patient support belts: | 1 pair |
| Foam mattress, PU covered, waterproof: | 1 piece |
| Heavy duty steel chassis with epoxy coated. | |
| Mild steel mesh platform or steel plate with ventilation hole for option. | |
| Collapsible aluminum alloy side rails. | |
| Height Position adjusted by hydraulic pump. | |
| Back section adjustment is operated by gas spring by manual handle. | |
| Bumper roller on four corner to protect the stretcher. | |
| Heavy duty noiseless PU castor, 125mm diameter. | |
| Central brake system for castors with brake pedals on four corner. | |
| With pushing handle on both side. | |
Options
| Transfer Mattress: | 1 piece |
| Monitor support: | 1 piece |
