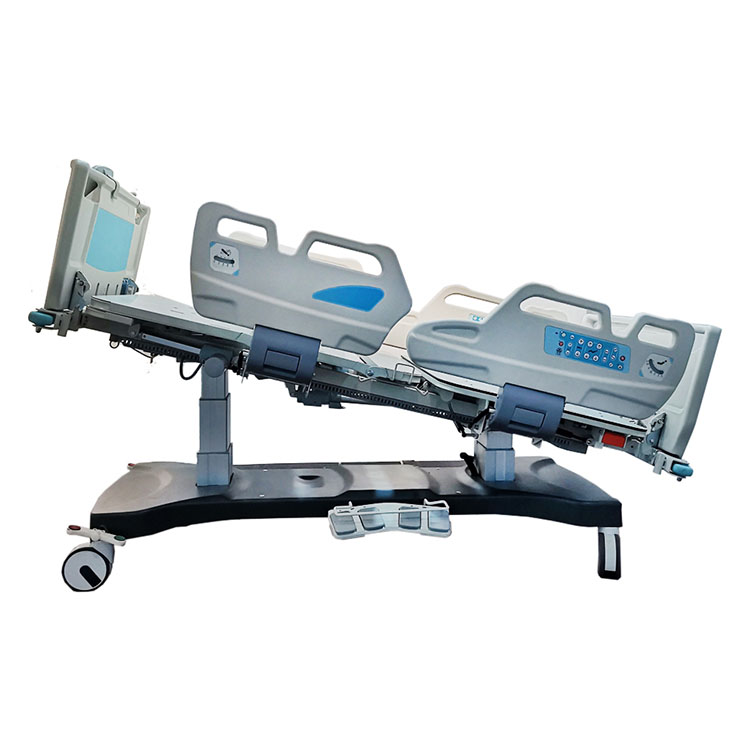

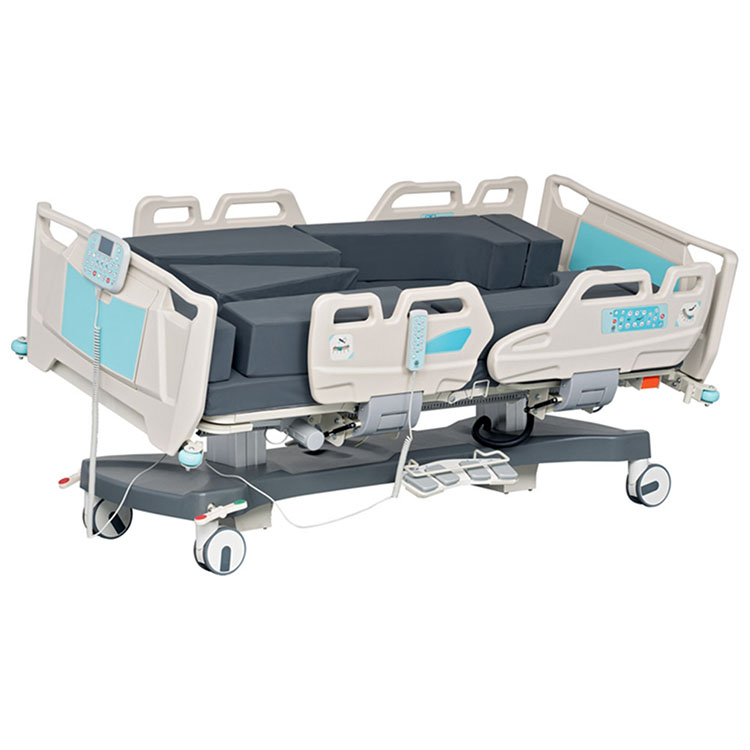

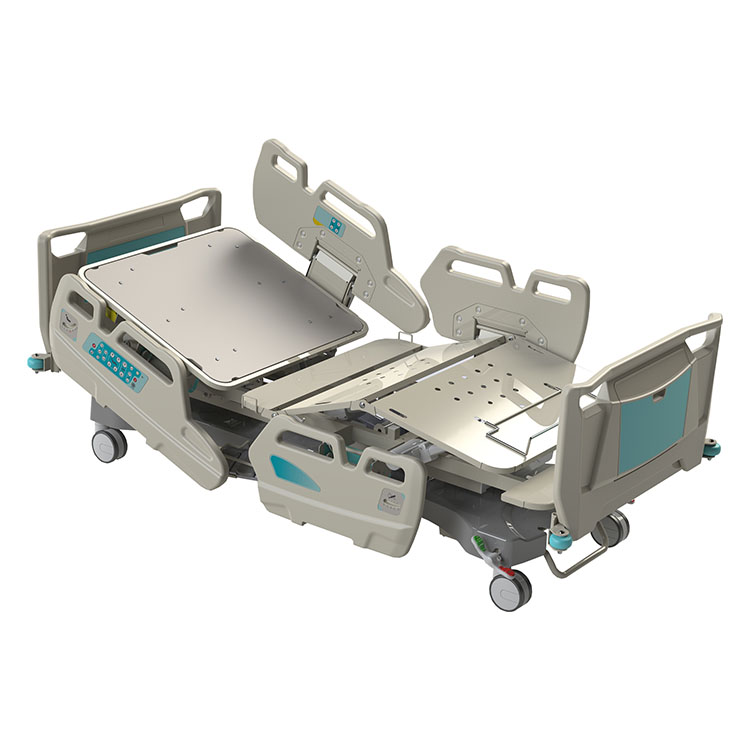

ICU Bed

YFD8688K

Eight Function Electric Hospital ICU/CCU Bed With Weighing Scale

Fill in the form to get more product information
Video Catalogue
Product Introduction

Technical Parameters

Overall Size(L*W*H): 2230*1060*480-880mm
Sleeping Size(L*W): 1960*900mm(Extension-150mm)
Loading Capcity: 300kg
Backrest max upward angle: 75°
Footrest max upward angle: 40°
Height is adjustable: 480-880mm
Max Revere-Trendelenburg: 0-12°
Max Trendelenburg: 0-12°
Lateral Tilt Left: 0-15°
Lateral Tilt Right: 0-15°
Electric bed extension: 150mm
Auto counter function
Auto regress function
One button cardiac chair position function
One button electric CPR function
Manual CPR release accessible on both sides
One bottom chair position function
Weighing scale system

Technical Configuration

Steel frame with electrophoresis and powder coating
MS perforated platform with ventilation hole, moulded
Steering function to manipulate the bed by one person
HDPE plastic head/foot board, detachable with storage box
HDPE plastic tuck-away side rail, 4 pieces, with bed angle indicator
Embedded railing control with nurse lock
Heavy duty caster, dual sides with diameter of 125mm & Central brake system
Bumper caster on four corners
Hand remote wired Controller
I.V. pole
Urine bag hook
Battery backup
